LVM RAID on Artix Linux

This is a follow up article to activities started with the migration from Arch Linux to Artix Linux distribution. Since the switch over to OpenRC based distribution was successful, I decided to move on with hardware changes soon after.

Motivation

The major goal was to reuse the replaced 3TB hard drives into RAID0 setup as additional backup storage, those combined capacity would match to newly acquired hard drives. I faced some challenges during implementation:

• Akiwa GHB-B05 Mini-ITX case can only physically fit two 3.5'' hard drives, and both places were already occupied by the main two hard drives.
• There are only two SATA connectors available on the Jetway JNF-76 motherboard.
• I wanted to keep using network aggregation, thus I need to have two Ethernet ports available. The motherboard has only one, though.
• If possible, I wanted to avoid additional expenses or keep them to a minimum.

The plan

To remedy the space limitation issue, I decided to place the hard drives outside instead, by reusing my external hard drive box and HDD radiator designed for 5.25'' bay for each hard drive accordingly. Both, the box and the bay provided a stable vertical position and can be placed close to the case, making it accessible to cables from inside the case. I have accumulated all the required cables throughout the years, so no additional purchases were needed.

To get additional SATA ports I was forced to replace my AD3INLANG-LF LAN expansion daughterboard with the ADPE4S-PB Marvell SATA controller (it is based on Marvell 88SE6145-TFE1controller). I was a bit reluctant about this decision, since I was facing constant boot issues in the past with it. It also needs special configuration to make it work on Linux. Moreover, the Jetway proprietary daughterboard connector makes it challenging to insert the board firmly. Finally, loosing LAN ports meant that I can't use network aggregation without additional PCI card. However, the only alternative was to buy a new PCI SATA controller with at least 3 SATA connectors, which is getting harder to find and the prices are not too attractive in my region. Additionally, it's hard to predict if such decision won't bring new problems along the way. So, I decided to go with the daughterboard exchange.

In order to keep network aggregation possible I needed to do one purchase. Since Intel PRO/1000 GT PCI network card from my stockpile is not compatible with the ADPE4S-PB daughterboard due to firmware clash, I needed to buy another one without network boot support. For that purpose I acquired the D-Link DGE-528 (Rev. C1) network card which is based on Realtek RTL8169SC NIC. It costed me around 7.5€ and kept the goal for minimal spendings.

Additionally, I reused one back plate panel containing 2xSATA to eSATA connectors with one 4-pin Molex power connector, one SATA and one eSATA to SATA cable. All of them I had in the pile of my parts.

Assembly

Initially, I made sure that I have enough power cables and I can extend them long enough outside the case, so that hard drives would stand vertically, stable and still with enough room for cables not to be stretched. Fortunately, I still had one free Molex connector, which I used to connect the back panel's power connector. It made it extremely easy to connect one of two hard drives, since both power connector and eSATA connector were redirected outside the case. However, the second one couldn't be connected in the same manner, because it needed one more power connector. Fortunately the PSU had four SATA power connectors, out of which one was long enough to go outside the case and reach the hard drive. So in the end, I had all four PSU's SATA power connectors used (1xSSD, 3xHDD) plus one Molex connector used for the back panel's power cable extension (1xHDD). The back panel also provided ability to attach one of the hard drives using eSATA to SATA cable. Since I had only one such cable, I used long SATA cable to attach the second hard drive from inside of the case.

Externally placed hard drives cabling

Once cabling was finished, I spent quite a long time to properly attach the daughterboard itself. Like in the past experience, the boot process was very unstable, but after multiple attempts I reached a quite reasonable stability with most of boot attempts successful. Unfortunately, I noticed one regression over Delock controller: attempts to read Kingston SSD temperature with hddtemp utility was causing it to fail (with the reboot required).

Cabling at the back plane

The easiest part of the assembly was attaching D-Link network card to PCI slot and cable cleanup. As expected the DGE-528 didn't clash with the daughterboard and it is well supported by Linux. Integrated SATA controller needed to be switched to IDE mode to avoid the clash as well.

Hard drives in external casing

RAID0 Configuration

The main goal was to setup two 3TB hard drives into RAID0 mode, so that they will be available as one virtual 6TB drive. This volume would match with my newly bought 6TB drives and act as yet additional backup storage. To achieve this, I tried to use Marvel firmware first, but unfortunately it was freezing up on RAID creation attempt. I couldn't figure out the reason, but it didn't seem like it was a capacity limit, since 6TB hard drives were detected by the controller without issues. Some drive incompatibility looked like more plausible explanation but I had no means to test and verify my assumptions. As a consequence, I decided to try to setup LVM managed RAID instead. Using two sources from Gentoo Linux wiki and Red Hat Linux documentation I successfully configured my LVM RAID0 by using these commands:

• Install and start LVM service:
• sudo pacman -S lvm2 lvm2-openrc
• sudo rc-update add lvm boot
• sudo /etc/init.d/lvm start
• Create LVM physical volumes and volume groups
• sudo pvcreate /dev/sda1 /dev/sdc
• sudo vgcreate nasbackupvg /dev/sda1 /dev/sdc
• sudo vgs #to check
• sudo vcreate --type raid0 -l 100%FREE -n nasbackuplv nasbackupvg
• Format and mount volume using XFS filesystem:
• sudo mkfs.xfs /dev/nasbackupvg/nasbackuplv
• sudo mkdir /mnt/raid
• sudo mount -t xfs /dev/nasbackupvg/nasbackuplv /mnt/raid
• Edit /etc/fstab by adding the line (in order to mount volume on boot):
• /dev/nasbackupvg/nasbackuplv            /mnt/raid    xfs    defaults,relatime    0    4

Once RAID setup was ready and working, I also edited my rsync scripts to accept destination path and updated my crontab configuration to sync with the new mount point. With this step, the goal to reuse hard drives for backup was successfully achieved.

I also performed some performance metrics of all attached drives:

• sudo hdparm -tT /dev/sdX and dd if=/dev/zero of=output.img bs=8k count=256k:
• Seagate 3TB (attached to Marvell controller)
• Timing cached reads:   1000 MB in  2.00 seconds = 500.18 MB/sec
• Timing buffered disk reads: 320 MB in  3.00 seconds = 106.52 MB/sec
• 2147483648 bytes (2.1 GB, 2.0 GiB) copied, 39.3878 s, 54.5 MB/s (for RAID setup Toshiba+Seagate)
• Toshiba 3TB (attached to Marvell controller)
• Timing cached reads:   1002 MB in  2.00 seconds = 500.75 MB/sec
• Timing buffered disk reads: 326 MB in  3.01 seconds = 108.44 MB/sec
• 2147483648 bytes (2.1 GB, 2.0 GiB) copied, 39.3878 s, 54.5 MB/s (for RAID setup Toshiba+Seagate)
• Toshiba 6TB (both attached to VX800 controller)
• Timing cached reads:   1012 MB in  2.00 seconds = 505.75 MB/sec
• Timing buffered disk reads: 528 MB in  3.00 seconds = 175.78 MB/sec
• first HDD: 2147483648 bytes (2.1 GB, 2.0 GiB) copied, 18.6864 s, 115 MB/s
  second HDD: 2147483648 bytes (2.1 GB, 2.0 GiB) copied, 15.9705 s, 134 MB/s
• Kingston SSD (attached to Marvell controller)
• Timing cached reads:   982 MB in  2.00 seconds = 491.40 MB/sec
• Timing buffered disk reads: 324 MB in  3.01 seconds = 107.47 MB/sec
• 2147483648 bytes (2.1 GB, 2.0 GiB) copied, 36.0755 s, 59.5 MB/s

Network aggregation

Network aggregation reconfiguration was required as well as a result of hardware changes. Instead of using AD3INLANG-LF daughterboard with three Intel 82451PI network controllers, I utilized the integrated Realtek 8111C controller and PCI attached D-Link DGE-528T network card with Realtek 8169C NIC. The integrated one was named as ens1 and the D-Link one as enp4s3, so configuration was the following:

• nmcli con delete bond0 # deleting previous interface
• nmcli con add type ifname bond0 bond.options "mode=802.3ad"
• nmcli con add type bond ifname bond0 bond.options "mode=802.3ad"
• nmcli con add type ethernet ifname ens1 master bond0
• nmcli con add type ethernet ifname enp4s3 master bond0

It worked as expected but the transfer speed reduced to 40-43 MB/s compared to >50MB/s which Intel NICs were usually achieving. Regression was expected and observed in the past, acceptable for current usage scenarios.

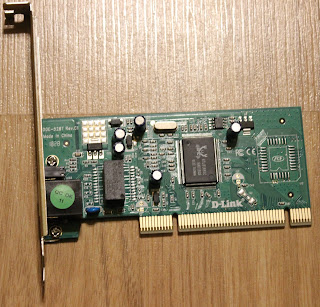

D-Link DGE-528T

Conclusion

In general, the plan went quite successfully. I managed to reach all the goals with minimal spendings and effort. They were few issues like multiple attempts to attach daughterboard properly, Marvell firmware RAID creation failure but I managed to circumvent them in one way or another. Some performance metrics are not stellar but they are sufficient for home NAS usage at present day. Though, I believe that it is the last major hardware update around this motherboard, since I am reaching the limits with this decade old platform. The next step would require more modern solutions but by that time the current system will still serve me well.

Arrangement of PC and hard drives

Migration from Arch Linux to Artix Linux

Recently I reached the point where 3TB hard drivers were getting almost full and I needed an upgrade. As a result, I opted for two Toshiba MG04ACA600E 6TB hard drives which replaced Toshiba DT01ACA300 and Seagate Barracuda ST3000DM001 3TB models. They were successfully recognized by the Jetway JNF-76 motherboard, on which my NAS server is based on. As a matter of fact, VIA AHCI/RAID firmware always properly displays them in SATA II mode (max speed for all VIA controllers AFAIK), which wasn't the case with the previous setup when one of the drives randomly would drop to SATA I. In general, there is nothing to complain about them, hopefully they will be reliable too.

Toshiba MG04ACA600E

This upgrade and few unexpected free days made me rethink both software and hardware configurations again and come back to the original question of the Linux distribution to be used. Probably one additional kick was the news about Project Trident decision to move from FreeBSD-based TrueOS to Void Linux, which made me revisit some light-weight distributions, init systems and file systems. I was even considering to try NetBSD with OpenZFS but quite soon this plan faded away due to lack of experience on managing OpenZFS filesystem. Initial testing showed that I can easily destroy my data and before such a move, I should be really confident with it. Even though I was very much satisfied with Arch Linux setup too, I was itching to try some systemd-free distribution instead, which gives me more natural and familiar way of work. The relatively recent consolidation of Arch and Manjaro OpenRC spinoffs into Artix Linux caught my major attention for the obvious reasons. It is still based on Arch, which provides a more familiar environment, spirit and tools. The distribution officially supports OpenRC and runit init systems. I chose OpenRC one, created migration plan, and started the journey.

First boot

To make sure that it boots and recognizes my hardware, I downloaded the latest artix-base-openrc-20191009-x86_64.iso image which I could find at the time of migration in one of their mirrors. System booted without issues and recognized all the required hardware, pata_via module probably was compiled into the kernel since I didn't need to configure it separately, contrary to the Arch Linux. Setup included JFS and XFS mounting option support which was required for my data disks. It reassured me to go forward since I didn't find any potential setbacks.

The plan

To minimize a potential regression impact, I decided to prepare a transition plan. It wasn't very detailed, since it did not describe all the specific commands but it pointed out general actions I would need to perform:

• Backup /home and /etc/fstab
• Backup samba, crontab, modules and network settings.
• Boot into Artix setup and backup Arch system disk (it has dd included).
• Install Artix itself
• Install/configure required software and services: samba, wget, rsync, git, fossil, jfsutils, xfsprogs, rtorrent, lm_sensors, hdparm, hdtemp, ethtool, vim, vi, man, openssh.
• Restore /home, crontab
• Configure network
• Configure mounting points to data drives
• Install/configure powerd

Migration

The initial step was to prepare backup for all settings, /home folder and Arch Linux system disk itself. Individual settings files were simply copied manually one by one, and /home folder was synced using rsync utility. For the Linux system disk backup I booted into Artix setup and used dd utility together with gzip compression utility to copy all the system disk (dd if=/dev/sda conv=sync,noerror bs=64K | gzip -c  > /mnt/nasbackup.img.gz). This step probably took the longest time wise, preparing compressed image of 240GB SSD drive took way longer than I was expecting (hours). Probably it was related to limited performance of the system itself.

Once all backup were ready, I moved on to the installation part. The Artix installation process was based on the steps from distribution's wiki Installation and Migration sections so I won't go much into details. It was almost smooth process except that the base installation didn't have any editor installed, and this led me to install Vim editor first before I could do any required configuration (right after chroot command). Probably the only mistake by following the documentation was the NetworkManager installation where I should have preferred Gentoo's netifrc modules with dhcpcd utility instead.

Rebooting into the newly installed system gave few more surprises on how minimal the setup was. Even quite basic applications like hostname or man were not available. Though it was easily solved by installing inetutils (for hostname) and man packages using pacman package manager, however, it still felt a bit strange, since I believe Arch base install had more software. The list of my installed packages includes:

sudo pacman -S wget rsync git fossil jfsutils xfsprogs rtorrent lm_sensors hdparm hdparm-openrc hddtemp ethtool vim vi man openssh openssh-openrc samba samba-openrc cronie cronie-openrc powerd powerd-openrc inetutils

Besides that I also installed grub, os-prober, networkmanager and networkmanager-openrc during the initial installation process. However, as mentiond above I may replace NetworkManager with netifrc modules and dhcpcd utility in the future.

As you may have noticed, all services have -openrc counterpart for OpenRC service management. OpenRC service files are installed in /etc/init.d for execution and /etc/conf.d for configuration. After that service needs to be added to a certain execution level (I used default for all) using rc-update add command and they can be started by rc-service start command. Services I have added include:

sudo rc-update add NetworkManager default

sudo rc-update add sshd default

sudo rc-update add smb default

sudo rc-update add cronie default

sudo rc-update add cpupower default
sudo rc-update add hdparm default

The next step was to configure the network aggregation. Since I installed NetworkManager, I needed to use nmcli utility to setup bonding network interface (ensure that all interfaces are down and leases are deleted from /var/lib/NetworkManager/*.lease before proceeding):

sudo nmcli con add type bond ifname bond0 bond.options "mode=802.3ad"
sudo nmcli con add type ethernet ifname enp4s4 master bond0
sudo nmcli con add type ethernet ifname enp4s6 master bond0
sudo nmcli con up bond-slave-enp4s4
sudo nmcli con up bond-slave-enp4s6
sudo rc

With dhcpcd utility it would have been a slightly different story (ensure that all interfaces are down and all leases are deleted from /var/lib/dhcpcd/*.lease before proceeding):

sudo pacman -S dhcpcd dhcpcd-openrc
sudo rc-update add dhcpcd

sudo ln -s net.lo net.bond0

vim /etc/conf.d/net
    config_enp4s4="null"
    config_enp4s6="null"
    slaves_bond0="config_enp4s4 config_enp4s6"
    config_bond0="dhcp"
    mode_bond0="802.3ad"

sudo rc

Finally, I completed my setup by restoring my home folder content, crontab and samba configuration files. Migration ended up to be easy and problem-free. With backup time excluded and ignoring some confusion during network configuration, it probably didn't take me more than few hours of work.

There are some caveats though which I noticed but I am clueless as to the cause and if it actually affects the system in any way:

• Multiple segfault messages in dmesg (not sure yet, what causes these messages but it doesn't seem to affect any of the required functionality as of result): openrc-run.sh[2008]: segfault at 8 ip 00007fdfbfb890dc sp 00007ffd4de79040 error 4 in libc-2.30.so[7fdfbfb37000+14d000]
• Warning message for bond0: "Warning: No 802.3ad response from the link partner for any adapters in the bond". This may indicate the router issue or premature warning message, but apparently the bonding interface works correctly (and router indicates it as active).

In conclusion, I can say that the OpenRC init system actually feels more intuitive and simple than systemd, but the maturity of Artix distribution is still not on par with systemd-based Arch Linux. Errors in boot messages, inconsistencies and confusing information in wiki page and even the web page itself are the signs of that. Nevertheless, for my simple NAS server requirements this distribution seems like a perfect fit and I believe I will stick with it unless stability-wise it won't prove itself. Arch Linux was very stable and polished in this regard despite its rolling release nature, I expect no less from Artix as well. If anybody would ask me for a recommendation, I would still recommend using the Arch Linux distribution, unless, that person would prefer using the systemd-free distribution for whatever reason (in that case Gentoo and Void would be a primary choice I guess). Yet, I believe Artix has a potential to become one of the strongest light-weight distributions, especially for those seeking simplicity and freedom of choice.

Planned hardware changes

Though the migration went successfully, I still have some possible hardware changes in mind. First of all, VIA based PCI controller is not compatible with the SSD I am using, which triggers a workaround in the driver to reduce transfer rate to ~60 MB/s:

ata3: Incompatible drive: enabling workaround. This slows down transfer rate to ~60 MB/s

Secondly, I am planning to reuse replaced hard drives as yet additional backup solution in RAID0 setup (which in turn will make them 6TB in total).

Because of these changes, I am considering to revert to using ADPE4S-PB SATA II daughterboard. It means checking its compatibility with Artix (hopefully the same or a similar configuration to Arch Linux will work) but I fear about the boot process stability which improved consideribly once I switched to Delock controller. However, the daughterboard can provide enough SATA interfaces for the system drive and two hard drives without hindering too much to the overall system performance (it is based on faster PCI-E interface and it supports SATA II 3 Gbit/s transfer speed). In addition to that, I will need some creativity on attaching those two additional drives, since I don't have space in mini-itx case anymore. Probably I will need to keep them outside by using some extentions to reach the hard drive SATA connectors. The main concern is that the SATA power connector is too short to go outside the case. I hold my breath on Molex to SATA adapters. For keeping them outside, I will try to reuse my old external 3.5'' HDD cases. We will see how this goes...

To keep the network aggregation I also bought a cheap D-Link DGE-528T (Rev. C1) network card with high expectations that it will successfully work with the daughterboard contrary to Intel PRO/1000 GT card, since it should not have any interfering firmware. It is based on the Realtek RTL8169SC controller, which I would pair up with the integrated Realtek RTL8111C controller. Performance-wise, I do expect some degradation compared to AD3INLANG-LF daughterboard, but this is acceptable.

D-Link DGE-528T

I am planning to write a new article if this project goes successfully.

Information on DM&P Vortex86DX3 SoC

DM&P Vortex86 SoC series are 32-bit x86 compatible CPUs which are pretty rarely seen outside embedded usage. Original Vortex86 was the same as SiS55x SoC based on Rise mP6 CPU but later designs diverged into the independent unrelated architecture implementations. Unfortunately, there is no information on how and if models are related to each other. Though some specifications are provided in the official page but some information is still left out, possibly accesbile on NDA basis only. At the time of writing this article, wikipedia page was incomplete, partially messy and possibly still incorrect because of the lack of verified sources, it didn't mention anything about EX2 model yet. Nevertheless some models are still produced and one can find solutions made by ICOP Technology or DM&P itself. Since I had a chance to buy Vortex86DX3 based EBOX-3352DX3-AP small PC system last year, I decided to gather and share some information on this SoC, part of it can be challenging to find. I've used several sources like CWID, dmesg, /proc/cpuinfo (NetBSD 8.99.x, SparkyLinux 5.7 with 4.19.0-4-686 kernel version), various datasheets, pages and images.

Vortex86DX3 specifications (mostly from official page, PCI IDs from NetBSD dmesg):

• DM&P A9126 in BIOS
• CPUID 0x36504d44
• Dual-core
• ~1 GHz frequency
• 6-stage pipeline
• 40 nm manufacturing process
• integrated FPU (1 per core, 2 in general)
• Implements ANSI/IEEE standard 754-1985 for binary Floating-Point Architecture
• 8-way 32KB I-Cache, 8-way 32KB D-Cache, 4-way 512KB L2 Cache with write through or write back policy
• DDR3 control interface, up to 2GB RAM, 32-bit data bus (it runs at 667MHz in my system)
• Integrated graphics (2D acceleration only), RDC semiconductor (vendor 17f3) PCI ID: 2015.
• UMA architecture
• VGA controller
• 2D Graphics engine support
• Max display resolution 1920×1440@60Hz with 234MHz video clock
• Dual Display support: only one display can be 1920×1200, 1 DVO (24bits) & 1 D-SUB or 2 DVO (12bit x 2)
• Supports H.264 1080P video decode
• HD-Audio (Realtek ALC262 is used in my system)
• Embedded 2MB Flash for BIOS storage
• ISA bus interface (most likely R6035, RDC semiconductor (vendor 17f3) PCI ID: 6035)
• AT clock programmable
• 8/16 Bit ISA device with Zero-Wait-State
• IDE Controller, R1012, RDC semiconductor (vendor 17f3), PCI ID: 1012.
• 2 IDE or 2 SD cards
• 1 port SATA I (1.5 Gb/s)
• Package: 31x31mm, 720 Ball PBGA
• Operating temperature -40 to 85℃



CPU supports CMPXCHG8B, CMOV, FXSAVE/FXSTOR instructions, MMX and SSE extensions (no SSE2 or above). It supports page size extension (4MB) and time stamp counter. Because of above it can be probably classified as i686-compatible CPU (it loads i686 Linux kernel successfully). It does not support physical address extension (PAE), but considering maximum 2GB RAM limitation it is not needed. Due to lack of SSE2 and above extensions it may be challenging to use it as a desktop system (all moderns browsers require SSE2 by default, however SSE only build of palemoon browser can be still downloaded manually). /proc/cpuinfo information marks CPU affected by Meltdown, Spectre v1, v2, v4 (speculative store bypass) and even L1TF vulnerabilities but actually it may not be vulnerable to at least some of them, since Linux does that on precaution, not on actual testing results. FPU is built-in. It also has integrated GPU without any 3D acceleration. SoC also supports 1xSATA I, 2xIDE or SD cards, USB 2.0, Fast Ethernet (10/100), PCIe bus, integrated 2MB flash for BIOS, SPI. Additional information also can be found in CWID report in cpu-world.com (report has apparently incorrect halved cache sizes). /proc/cpuinfo can be found below.

/proc/cpuinfo (SparkyLinux 5.7):

processor    : 0

vendor_id    : Vortex86 SoC
cpu family    : 6
model        : 1
model name    : Vortex86DX3
stepping    : 1
cpu MHz        : 1000.051
physical id    : 0
siblings    : 1
core id        : 0
cpu cores    : 1
apicid        : 0
initial apicid    : 0
fdiv_bug    : no
f00f_bug    : no
coma_bug    : no
fpu        : yes
fpu_exception    : yes
cpuid level    : 3
wp        : yes
flags        : fpu pse tsc msr cx8 apic sep pge cmov mmx fxsr sse cpuid
bugs        : cpu_meltdown spectre_v1 spectre_v2 spec_store_bypass l1tf
bogomips    : 2000.10
clflush size    : 32
cache_alignment    : 32
address sizes    : 32 bits physical, 32 bits virtual
power management:

processor    : 1
vendor_id    : Vortex86 SoC
cpu family    : 6
model        : 1
model name    : Vortex86DX3
stepping    : 1
cpu MHz        : 1000.051
physical id    : 1
siblings    : 1
core id        : 0
cpu cores    : 1
apicid        : 1
initial apicid    : 1
fdiv_bug    : no
f00f_bug    : no
coma_bug    : no
fpu        : yes
fpu_exception    : yes
cpuid level    : 3
wp        : yes
flags        : fpu pse tsc msr cx8 apic sep pge cmov mmx fxsr sse cpuid
bugs        : cpu_meltdown spectre_v1 spectre_v2 spec_store_bypass l1tf
bogomips    : 2000.04
clflush size    : 32
cache_alignment    : 32
address sizes    : 32 bits physical, 32 bits virtual
power management:

DM&P Vortex86DX3 SoC

2018 in review

I haven't wrote any yearly reviews since 2013 and my blog was pretty stale since then. Nevertheless, in the last two years my IT life is starting to get busier again, so I believe a small review is worth a shot.

Upgrade to AMD Ryzen

The beginning of the year went unexpectedly for me, since my main computer, which is based on AMD Opteron 3280 just refused to boot one day. Not sure if it was CPU or motherboard failure, unfortunately I didn't have any means to test, but it forced me to look for available options at that time. Eventually I opted for a Ryzen 5 1600 CPU and a Biostar X370GT5 motherboard with 2x16 GB Corsair Vengeance LPX 16 GB DDR4 2400Mhz RAM. Unfortunately, Zen+ CPUs were released a bit later that year but even the first generation Zen CPU performance improvement over Opteron was pretty significant. If motherboard will support Zen2 CPUs, I may upgrade to some model this or next year. Graphics cards is Asus Dual RX460 OC edition with 2GB GDDR5 RAM. I actually bought it in 2017 because old fanless Radeon HD 2400 Pro card was constantly overheating even without a heavy workload.

AMD Ryzen 5 1600 CPU

DM&P EBOX-3352DX3-AP

During my network aggregation project, I found out that industrial shops still were selling DM&P Vortex86 SoC based systems. These are x86 compatible CPUs with the roots up to Rise mP6 depending on the model. I partially knew about them during the time I was collecting CPUs. Since I actively participate in NetBSD project, I decided to buy the system based on dual core Vortex86 DX3 to test compatibility and possibly improve it. Vortex86 CPUs has different models and they are not necessarily similar to each other (by internal architecture, supported instructions and features). The DX3 model has SSE, MMX support and it is the only dual core solution on Vortex86 series. It was produced on 40nm manufacturing process. SoC has an integrated 2D graphics engine and operates at ~1GHz frequency. Finally, it supports CMPXCHG8B and CMOV instructions which makes it a i586 class CPU. Unfortunately, however, it doesn't support SSE2 instructions and above.

I bought the DM&P EBOX-3352DX3-AP system specifically, where AP means auto power on. It basically means that the system boots automatically once you plug the power adapter to electricity. It doesn't have any physical power/reset buttons. Major specifications include 2GB DDR3 RAM, 3xUSB 2.0 ports, SD card slot, 10/100 Ethernet, fanless design, D-Sub 15-pin VGA connector.

The BSD support wasn't in good shape with default BIOS configuration:

• FreeBSD booted properly but didn't recognize the exact model of Vortex86 CPU, integrated LAN controller was recognized but couldn't be initialized properly. Thus network couldn't be setup.
• NetBSD could be booted only with ACPI/SMP disabled (boot -12), otherwise boot process would loop into continuous USB and IDE controller read timeout cycle. Exact model of Vortex86 CPU wasn't recognized, LAN controller behaved the same as in FreeBSD. No network again. Eventually I submitted a small patch to recognize CPU model properly (at time of writing the code is available in current branch only).
• OpenBSD boot process was almost immediately crashing with ACPI aware OS option enabled in BIOS. It boots with the option disabled but USB devices fail to work in this case. Network seems to be not working as well, though like all BSDs it can recognize network card and attach a correct driver to it. CPU model was correct though.

Just before I finished the article I had started to play with some BIOS options which seemed to improve compatibility for OpenBSD/NetBSD, however, I am planning to write a new article about that if test results will be positive.

For Linux, I tried the Sparky Linux distribution. It worked fine, including network and X.org server, just the CPU model wasn't recognized properly.

Inside the DM&P EBOX-3352DX3-AP (BIOS battery was re-soldered)

D-Link DUB-1312

To remedy non working integrated NIC in EBOX-3352DX3-AP system I bought the D-Link DUB-1312 USB3 Gigabit adapter. It appeared to be not supported by NetBSD initially as well. After some digging I found out that it is based on ASIX Electronics AX88179 USB 3.0 to Gigabit Ethernet controller which has support by NetBSD. Thus, adding support was pretty easy and the code already exits in the current branch. I hope it will be pulled to 8 release branch too. Additionally, I also bought 4World USB to serial adapter (likely CH340 based) since DM&P computer doesn't have any COM ports. Unfortunately, it was failing to work in NetBSD. Eventually, I found the fix based on OpenBSD driver and it was applied in the current branch just recently.

D-Link DUB-1312 USB3 Gigabit adapter

Q68

Being a long Sinclair fan, I also didn't miss a chance to buy a newly designed Sinclair QL compatible Q68 computer. It is a small 8x10cm circuit board, having 68000 compatible soft CPU, operating at 40MHz, 32MB RAM, two SDHC slots, up to 1024×768 VGA support, serial port and some other goodies. It comes with a SMSQ/E operating system currently. I must admit, I didn't have a chance to play with it much. The QL environment is quite unusual compared to most systems I have ever tried and the learning curve is pretty steep for me. I hope to learn an ecosystem better this year, including the use of QL emulators. Many years ago I actually wanted to buy a Q60, which is still the most powerful QL compatible system to date but I missed my chance before, as it was out of stock. On the other hand it doesn't support LCD monitors which would make it almost unusable in modern days. Q68 is way less powerful but supports modern monitors.

Q68 from the top

Edimax EN-9320SFP+

Since my router supports one 10Gbit SFP+ port, I decided to buy a 10GBit card for curiosity. Not that it practically would help to increase the speed but it is the first step into new waters. Edimax EN-9320SFP+ was the cheapest choice around. It is based on Tehuti TN4010 which turn out to be pretty badly supported by any operating system. In Linux you need to recompile and install the driver manually. It still fails to work after computer is awake from sleep mode. Full reboot is required. There is no support for any of BSDs. Regarding performance, speedtest showed big upload speed improvement compared to 1GBit NIC and much lower response times. Download speed is pretty similar though.

Edimax EN-9320SFP+

Edimax RG21S router

I also bought the Edimax RG21S router last year. It appeared to have pretty weak signal despite MU-MIMO support and 4 big antennas. It means one may probably need WIFI extenders unless the house is really small or doesn't have heavy and tall furniture. Including very limited configuration and apparently rare firmware updates, the device was a bit of a disappointment for me. Because of that I hardly can recommend it for "power" users. Nevertheless, it proved to be stable and needs no special maintenance which makes it suitable for less demanding users.

FNATIC Gear Rush Pro

One more serious purchase was my first mechanical switch keyboard. Since typing is pretty much the major activity in my computer, I felt it was finally time to spend some money on a more professional keyboard. I decided to buy the FNATIC Gear Rush Pro keyboard with brown MX Cherry switches, which are considered less noisy than other switches. I must admit, typing using mechanical switches was a completely different experience compared to more commonly affordable keyboards and I consider this purchase as one of the most important ones last year. The keyboard also proved to be resistant to water spills (I almost once spilled a full glass of water straight on the keyboard). Except a space key, all buttons are easy to disassemble, clean and assemble again. Only a space key gave me some trouble though.

FNATIC Gear Rush Pro keyboard

Oppo RX17 Pro

I ended 2018 with a mobile phone upgrade, this was because my previous phone's (HTC 10) battery's life span was severely deteriorating, after two years of usage. It barely can survive in a few hours, not unless connected to either a charger or a powerbank for extensive usage. It pushed me to look for a new mobile phone. After much deliberation and research, I finally chose the Oppo RX17 Pro model. Currently it is based on ColorOS 5.2 (Android 8.1) but ColorOS 6 (Android 9) should come later this year. The phone itself has a nice build quality, though it's CPU is not a flagship (Snapdragon 710). It is still faster than the one used in HTC 10. Probably the major selling point of this phone is its SuperVOOC fast charging technology. The interesting feature includes the ToF camera but it is basically unused now and the in-display fingerprint scanner (physical one works faster though).

Oppo RX17 Pro front view

NetBSD

The NetBSD project released its sixteenth major version last year (NetBSD 8), as well as NetBSD 7.2 and 7.1.2 releases. The project became 25 years old. My contributions included D-Link DUB-1312 USB3 Gigabit adapter support, Vortex86DX2, MX+, DX3 identification IDs (DX2, MX+ retrieved from coreboot code, DX3 was identified by myself), RDC 6040 LAN bug report for EBOX-3352DX3-AP system (unresolved yet), partial contribution to decision to remove legacy viadrm code over newer viadrmums driver (since viadrm was creating confusion and didn't work properly). As a result I finally successfully configured the stable X.org environment on VIA VT-310DP system, built wine and dillo web browser on it, contributed VIA Eden-N 1GHz CPU to CPUID database. I also started to use the dynamic kernel module to enable VIA Padlock instead of recompiling the kernel for it.

NetBSD 8.0 RC1 with MATE Desktop

Highlights

• Upgrade to AMD Ryzen 5 1600 CPU based platform.
• Acquisition of unique and rare EBOX-3352DX3-AP computer system based on DM&P VortexDX3 SoC.
• Purchase of D-Link DUB-1312 USB3 Gigabit and 4World USB to serial (01434) adapters. Creation of a patches for adapters to be supported on NetBSD.
• Purchase of 10 Gbit Edimax EN-9320SFP+ LAN adapter to utilize 10GBit SFP+ port in my router. It works on Windows 10 and Manjaro Linux (manual build and installation for the driver is required), BSDs are not supported.
• Purchase of Edimax RG21S router. Relatively weak WIFI signal was a disappointment.
• Switch from cheap keyboard to the mechanical keyboard - FNATIC Gear Rush Pro.
• Mobile phone upgraded from HTC 10 to Oppo RX17 Pro.
• NetBSD activities:
• Patch for D-Link DUB-1312 USB3 Gigabit adapter support
• Patch for Vortex86 DX2, MX+, DX3 SoCs identification IDs
• Contribution to viadrm code removal over newer viadrmums driver
• Testing of EBOX-3352DX3-AP based system with one bug report for its integrated LAN. More reports or improvements may come this year.
• Finally successful and stable Xorg configuration for VIA VT-310DP motherboard. It allowed me to run CWID CPU identification tool using Wine and Dillo web browser for VIA Eden-N CPU.
• Switch to dynamic kernel modules for non default kernel drivers.
